Unit of Measure
Specifications
Operating Voltage |
N/A 100 V - 120 V |
Operating Voltage Tolerance |
N/A 90 V - 132 V |
Inrush Current Maximum |
N/A 18 A |
Nominal current |
N/A 12 A |
Technical Data
Heating Capacity Minimum |
N/A 600 to 1200 W |
Axial Fan |
N/A 30 - 100 m³/h |
Storage Temperature |
N/A -49 to 158 °F |
Device Name |
N/A New: Enclosure heater with fan Plus - Available to order from 06/2025 |
Device Type |
N/A Fan heater Touchsafe |
Series |
N/A CS 032 |
Electrical Protection |
N/A Overvoltage protection |
Temperature Monitoring |
N/A Overheating protection in the event of fan failure (not reversible) |
Protection Class |
N/A II |
Protection Type |
N/A IP20 |
Heating Element |
N/A PTC resistor (PTC) |
Operating display |
N/A LED |
Casing |
N/A Plastic to UL94 V-0, black |
AC/DC |
N/A AC |
Inrush Current Duration |
N/A 12 s |
Frequency |
N/A 50;60 Hz |
Reaction Time |
N/A 5 s |
Service LIfe |
N/A >50000 h |
Setting Range |
N/A 32 to 140 °F |
Surface Temperature |
N/A < + 176 °F |
Operating Temperature |
N/A -49 to 158 °F |
Operating Humidit |
N/A =90 % RH |
Storage humidity |
N/A =90 % RH |
Connection Type |
N/A Connection terminal (push-in) |
Connection |
N/A 2 x stranded wire 1.0 - 2.5 mm² (with wire end ferrule) and rigid wire 1.0 - 2.5 mm² |
Mounting |
N/A Clip for 35 mm DIN rail screw ange |
Installation Position |
N/A variable |
Setup Height |
N/A 3000 m |

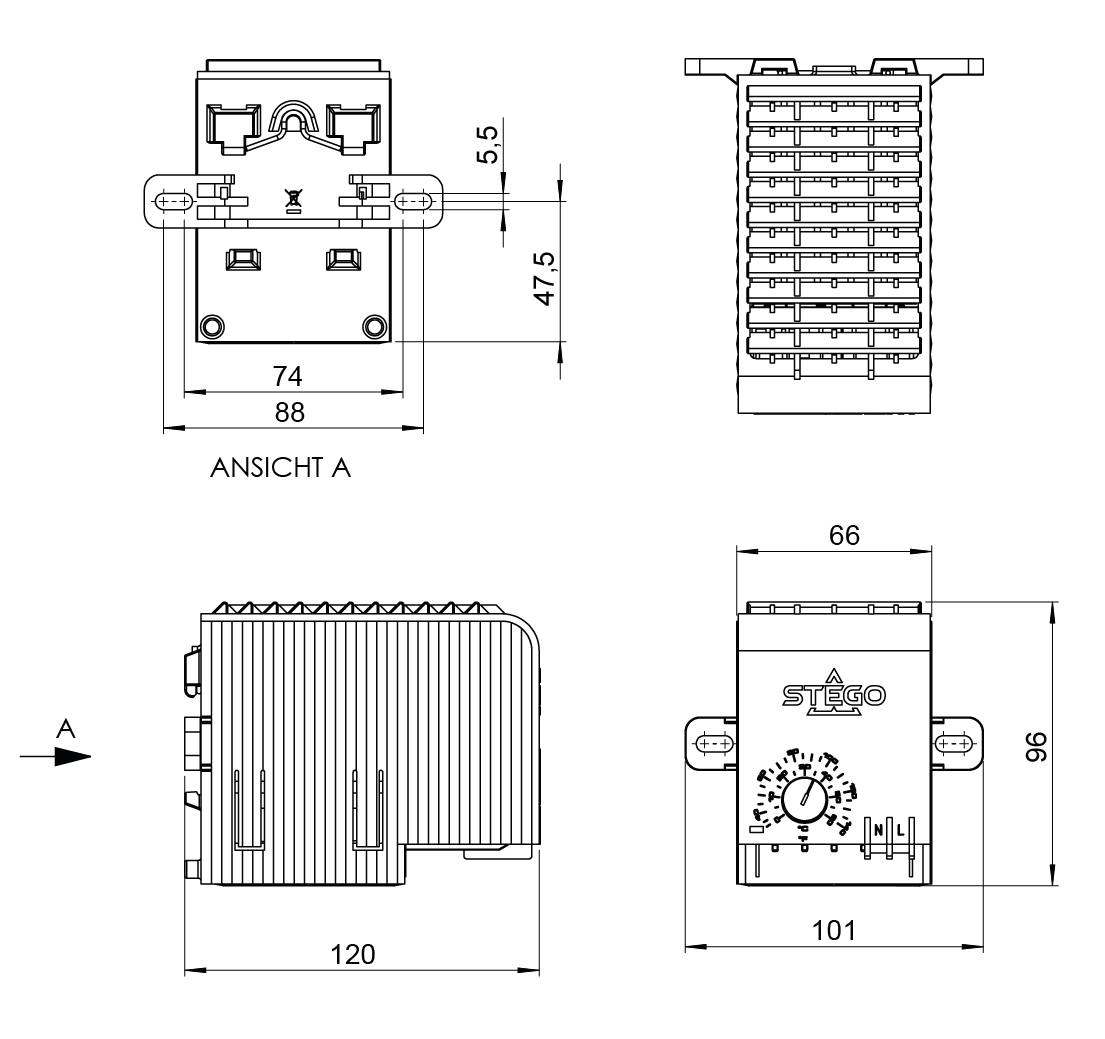

Height |
N/A 3.8 in |
Width |
N/A 2.6 in |
Depth |
N/A 4.7 in |
Weight |
N/A 17.6 oz |
