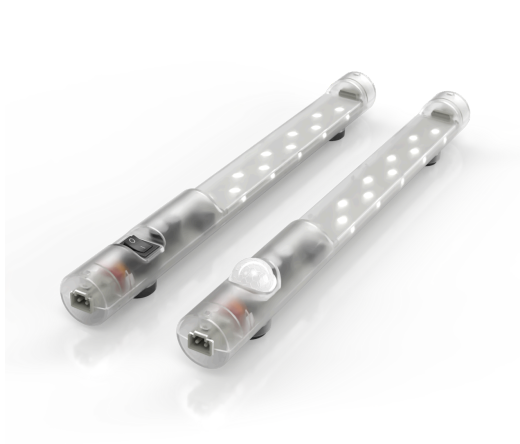

• LED 025-Enclosure-Lamp-MultiI-Wide-Voltage

LED lights with Multi Wide Voltage are ideal for flexible use in enclosures and casings of different sizes. Multi Wide Voltage supports both AC and DC voltages, ensuring maximum flexibility in the application. Fewer versions mean optimized processes in procurement and materials management. The mounting kit supplied also enables simple and versatile installation.

  • Multi-wide-range voltage (AC, DC)
  • Internal power unit for easy connection
  • Durable and maintenance-free thanks to LED technology
  • Daisy chain up to 10 lights
  • On/off switch or motion detector
  • Mounting kit for magnet, screw and clip fxing
  • No external transformer required
1 - 10 of 10 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Part #

Switch

Connection

Mounting

Height

Width

3D & 2D CAD

N/A On/Off switch N/A 2-pole connector with snap lock N/A Magnet, clip N/A 1.7 in N/A 1.6 in N/A
N/A On/Off switch N/A 2-pole connector with snap lock N/A Screw, clip N/A 1.4 in N/A 2 in N/A
N/A On/Off switch N/A 2-pole Duo pressure clamp for rigid wire cable 2.5 mm², Stranded wire with wire end ferrule 1.5 mm² N/A Magnet, clip N/A 1.7 in N/A 1.6 in N/A
N/A On/Off switch N/A 2-pole Duo pressure clamp for rigid wire cable 2.5 mm², Stranded wire with wire end ferrule 1.5 mm² N/A Screw, clip N/A 1.4 in N/A 2 in N/A
N/A Motion detector N/A 2-pole connector with snap lock N/A Magnet, clip N/A 1.9 in N/A 1.6 in N/A
N/A Motion detector N/A 2-pole connector with snap lock N/A Screw, clip N/A 1.6 in N/A 2 in N/A
N/A Motion detector N/A 2-pole Duo pressure clamp for rigid wire cable 2.5 mm², Stranded wire with wire end ferrule 1.5 mm² N/A Magnet, clip N/A 1.9 in N/A 1.6 in N/A
N/A Motion detector N/A 2-pole Duo pressure clamp for rigid wire cable 2.5 mm², Stranded wire with wire end ferrule 1.5 mm² N/A Screw, clip N/A 1.6 in N/A 2 in N/A
N/A without N/A 2-pole Duo pressure clamp for rigid wire cable 2.5 mm², Stranded wire with wire end ferrule 1.5 mm² N/A Magnet, clip N/A 1.7 in N/A 1.6 in N/A
N/A without N/A 2-pole Duo pressure clamp for rigid wire cable 2.5 mm², Stranded wire with wire end ferrule 1.5 mm² N/A Screw, clip N/A 1.4 in N/A 2 in N/A
